What Are Stainless Pipe Fittings and Which Types Are Best?
Stainless pipe fittings connect, redirect, or control stainless steel piping in food plants, chemical facilities, hospitals, and water systems. Their polished surfaces may look similar, yet their performance can differ sharply. A thin elbow can fail under vibration. A poorly matched thread can leak beside a hot pump. Small details matter.
Industry research shows why this subject deserves careful selection. Grand View Research’s 2024 stainless steel market report identifies continuing demand from construction, processing, energy, and transportation. MarketsandMarkets’ 2024 pipe fittings analysis also links growth to industrial upgrades, fluid handling, and corrosion-resistant infrastructure. These reports describe broad markets, not every fitting application. That distinction is easy to miss.
J.R. Davis, editor of ASM Specialty Handbook: Stainless Steels, explains, “The corrosion resistance of stainless steels results from the formation of a thin, adherent, chromium-rich oxide film.” This principle helps explain why grade, surface condition, and installation quality matter. It also challenges a common assumption: stainless does not mean maintenance-free.
This guide examines stainless pipe fittings by type, connection method, pressure rating, and alloy. It compares butt-weld, socket-weld, threaded, press, and sanitary fittings. The discussion references ASME B16.9, ASME B16.11, ASTM A403, and relevant hygienic design practices. Those standards provide a strong technical foundation, but field conditions still require judgment. A fitting selected from a catalog may perform poorly when chloride exposure, thermal cycling, or galvanic contact is ignored. The best choice is therefore not always the most expensive one. It is the option that matches the fluid, temperature, pressure, installation method, and maintenance reality.
What Stainless Pipe Fittings Do: Forms, Functions, and Flow Connections
What Are Stainless Pipe Fittings and Which Types Are Best?

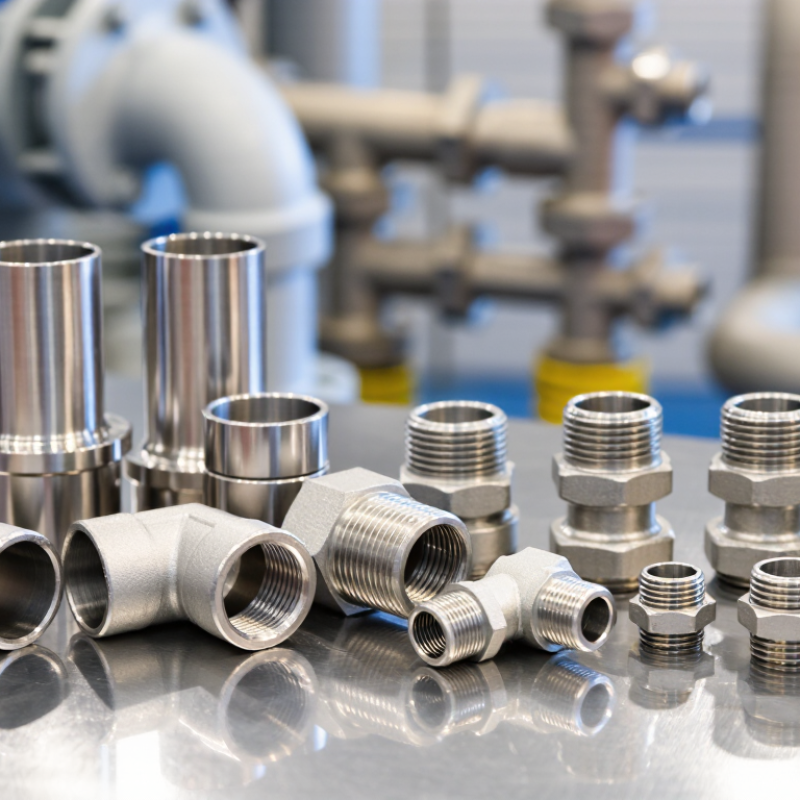

Stainless pipe fittings shape, divide, reduce, or redirect fluid flow. Common forms include elbows, tees, reducers, couplings, unions, and flanges. Each connection changes pressure loss and installation access. A 90-degree elbow turns a line sharply, while a long-radius elbow usually produces smoother flow. Tees split the stream, but poor sizing can create turbulence near the branch.
The best fitting depends on the fluid, temperature, pressure, and cleaning method. Type 304 stainless steel suits many water and food-service lines. Type 316L offers stronger resistance to chlorides and chemical exposure. It is not automatically the best choice. ASME B16.9 covers factory-made butt-welding fittings, while ASME B16.5 addresses flanges and their pressure classes. Threaded fittings can simplify repairs, but crevices may trap moisture. Welded connections reduce leak paths, though poor purge control can damage the internal surface.
Material demand also matters. World Stainless reported approximately 60.3 million tonnes of stainless crude steel production in 2023. Its industry data also indicates that over 80% of stainless steel is recovered for recycling after service. That supports long-term material value, not careless specification. In field inspections, misaligned pipes and mismatched schedules appear surprisingly often. A fitting can look perfect and still restrict flow. Check wall thickness, gasket compatibility, surface finish, and actual operating conditions before selection. Some designs still need reconsideration.
How 304 and 316 Stainless Grades Differ: 18% Cr vs. 2–3% Mo
What Are Stainless Pipe Fittings and Which Types Are Best?
Stainless pipe fittings connect, redirect, or control process lines. Common forms include elbows, tees, reducers, couplings, and unions. Their performance depends more on alloy selection than surface shine.
ASTM A240 identifies 304 stainless steel with roughly 18% chromium and about 8% nickel. This chromium forms a thin passive film, helping resist rust in clean air, water, and many indoor services.
316 stainless steel contains similar chromium, but usually adds 2–3% molybdenum. That small addition matters. Molybdenum improves resistance to pitting caused by chlorides, such as seawater, salt spray, and cleaning chemicals.
A commonly used PREN estimate is Cr + 3.3Mo + 16N. Higher values generally indicate stronger pitting resistance.
Not immunity.
The International Stainless Steel Forum reported global stainless crude steel production of approximately 58.4 million metric tonnes in 2023. That scale reflects broad industrial use, but it does not make every grade suitable everywhere.
Field inspections often find 304 fittings staining near coastal plants. For mild environments, 304 is usually practical and economical. For chloride exposure, 316 is the safer choice.
Check the actual chemistry certificate, pressure rating, and weld condition. A polished fitting can still fail. This is where specifications become imperfect, and careful review matters.
Which Fitting Types Match Each Joint: Elbows, Tees, Unions, and Caps
Stainless pipe fittings connect, redirect, branch, or close sections of stainless piping. Their best use depends on the joint, pressure, temperature, and maintenance plan. In field installations, matching the fitting to the joint prevents leaks and unnecessary stress. Material grade also matters. Grade 316 usually suits saltwater or chloride exposure better, while grade 304 often works in cleaner indoor systems.
Use elbows when the pipe must change direction. A 90-degree elbow saves space but can increase turbulence and pressure loss. A long-radius elbow may provide smoother flow in larger systems. Tees create a branch connection. Choose an equal tee for three similar pipe sizes, or a reducing tee when a smaller branch leaves the main line. The branch should be supported, especially when valves or heavy equipment are attached.
Unions suit joints that may need regular removal, such as pumps, filters, or compact equipment. They simplify servicing without rotating long pipe sections. However, unions can add leak points if sealing surfaces are dirty or misaligned. Caps close an unused pipe end and help protect a system during testing or future expansion. Threaded caps work well for removable closures, while welded caps provide a more permanent seal. Do not select by size alone. Check connection type, wall thickness, pressure rating, and installation access. A fitting can look correct and still fail the joint.
What Are Stainless Pipe Fittings and Which Types Are Best?
Which fitting types match each joint: elbows, tees, unions, and caps
The chart shows the primary joint function of common stainless pipe fittings. Elbows change flow direction, tees create branch connections, unions allow sections to be disconnected for maintenance, and caps close or terminate an open pipe end. A value of 1 indicates a primary application, while 0 indicates that the fitting is not normally selected for that function.
How ASME B16.9, B16.11, and ISO 4144 Define Fitting Dimensions
What Are Stainless Pipe Fittings and Which Types Are Best?
Stainless pipe fittings connect, redirect, reduce, or terminate piping systems. Their suitability depends on pressure, temperature, corrosion exposure, and joining method. ASME B16.9 covers factory-made wrought butt-welding fittings, including elbows, tees, reducers, and caps. It defines key dimensions, such as outside diameter, wall-related ends, and center-to-end measurements. These details help fitters align welded joints accurately in the field.
ASME B16.11 addresses forged socket-welding and threaded fittings. Its requirements support compact connections used in process lines, instrumentation, and higher-pressure applications. Socket-weld fittings require correct insertion depth and careful welding practice. Threaded fittings demand compatible threads and controlled tightening. ISO 4144 focuses on stainless steel fittings with threads conforming to ISO 7-1. It provides dimensional requirements for items such as elbows, tees, couplings, and unions. The standards are not interchangeable. A B16.9 butt-weld elbow cannot replace an ISO 4144 threaded fitting without redesign. That mistake still appears in rushed procurement work.
Tips: Check the drawing, end connection, schedule, pressure class, and material grade together. Measure the fitting before installation. Small dimensional differences can create stress, leakage, or difficult alignment. Keep certificates and inspection records. They support traceability and demonstrate professional control. In my experience, selecting the “strongest” fitting is not always best. A threaded fitting may simplify maintenance, while a welded fitting may reduce crevice exposure. Review the actual service conditions, and question assumptions that seem convenient.
What Are Stainless Pipe Fittings and Which Types Are Best? - How ASME B16.9, B16.11, and ISO 4144 Define Fitting Dimensions
| Standard |
Fitting Category |
Connection Type |
Typical Fittings Covered |
Nominal Size Range |
Main Dimensional Controls |
Common Pressure Designations |
Best Application |
| ASME B16.9 |
Factory-made wrought butt-welding fittings |
Butt weld |
Elbows, returns, tees, reducers, caps, crosses, and lap-joint stub ends |
Generally NPS 1/2 through NPS 48, depending on fitting type and product configuration |
Center-to-end dimensions, outside diameter, wall-thickness requirements, end bevels, and dimensional tolerances |
Used with ASME B16.5 or B16.47 flange pressure classes; the fitting standard itself does not assign a single pressure class |
Large process, chemical, energy, and high-integrity piping systems requiring smooth, permanent welded joints |
| ASME B16.11 |
Forged socket-welding and threaded fittings |
Socket weld or threaded |
Elbows, tees, crosses, couplings, half couplings, caps, plugs, bushings, and unions |
NPS 1/8 through NPS 4, with availability varying by fitting type |
Socket depth, socket bore, fitting length, thread dimensions, end-to-end dimensions, and tolerances |
Threaded: Class 2000, 3000, and 6000; socket-welding: Class 3000, 6000, and 9000 |
Compact branch connections, instrument lines, high-pressure small-bore piping, and installations where access for butt welding is limited |
| ISO 4144 |
Stainless steel threaded pipe fittings |
Threaded pipe connection |
Elbows, tees, sockets, caps, plugs, reducers, unions, and related threaded components |
Commonly specified by DN and nominal thread size; the applicable product table and edition should be checked for the exact range |
Thread form, thread size, fitting length, outside dimensions, wall thickness, and dimensional tolerances |
Pressure rating depends on the fitting design, material, temperature, and manufacturer’s declared service rating |
Stainless threaded piping for water, sanitary services, utilities, and moderate-pressure process connections |
Selection Guide: Choose ASME B16.9 fittings for welded piping systems and long-term structural integrity, ASME B16.11 fittings for compact small-bore socket-welded or threaded connections, and ISO 4144 fittings for stainless steel threaded pipework. Always verify the exact standard edition, material grade, wall thickness, temperature rating, thread specification, and applicable piping code before installation.
Dimensional Note: Nominal size is a designation rather than a direct measurement of the fitting’s actual outside diameter. Final dimensions may vary by fitting type, schedule, pressure class, material, and the applicable standard table.
