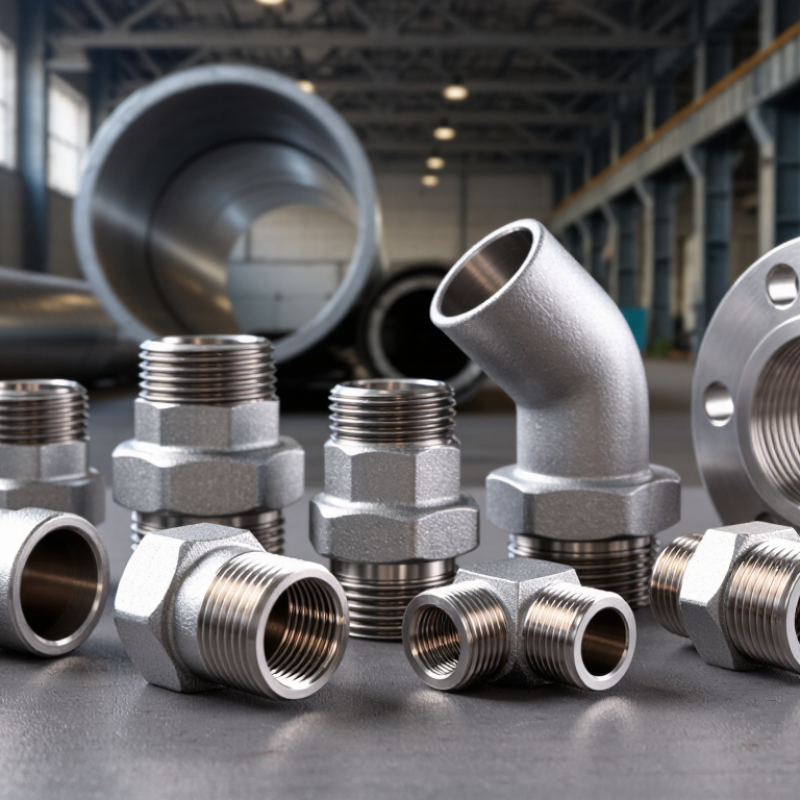

What Are the Top 10 Types of Stainless Steel Pipe Fittings?

Stainless steel pipe fittings quietly control the safety, flow, and service life of many piping systems. They connect pipes, redirect fluids, reduce diameters, and support maintenance access. A small elbow may sit above a hot process line, while a hygienic tri-clamp fitting may handle clean water or pharmaceuticals. Their shapes look simple. Their consequences are not.

World Stainless reported approximately 58.4 million tonnes of crude stainless steel production in 2023. That volume reflects strong demand across construction, food processing, chemical equipment, energy, and water infrastructure. However, pipe fittings represent only one part of this wider market. Grand View Research and MarketsandMarkets both identify corrosion resistance, industrial modernization, and replacement projects as important market drivers. Their estimates differ because product definitions and regional coverage differ. That limitation deserves attention.

Materials engineer J. R. Davis wrote, “Stainless steels are iron-base alloys containing a minimum of about 11% chromium.” This principle explains why grade selection matters. Chromium supports a passive surface film, but contamination, chloride exposure, poor welding, and incorrect installation can still cause failure. Grade 304 may suit many general applications. Grade 316 often performs better near chlorides. Neither choice is automatically correct.

This guide examines the top 10 types of stainless steel pipe fittings, including elbows, tees, reducers, couplings, unions, caps, crosses, nipples, adapters, and flanges. It compares geometry, connection methods, pressure considerations, surface finish, and typical applications. The categories may overlap in real projects. That is normal. A fitting selected from a catalogue still requires engineering judgment, verified standards, and careful site experience.

What Are the Top 10 Types of Stainless Steel Pipe Fittings?
Table of Contents [Hide]
1 Scope: The 10 Fitting Types, ASME B16.9/B16.11, and ASTM A403
2 Elbows, Tees, Crosses, and Reducers: Four ASME B16.9 Flow Fittings
3 Couplings, Unions, Caps, Plugs, Stub Ends, and Nipples: Six Joint Types
4 Size and Pressure Data: NPS ½–48, Schedule 5S–XXS, and Class Ratings
5 Material Selection: 304/304L at 18–20% Cr vs 316/316L with 2–3% Mo

Scope: The 10 Fitting Types, ASME B16.9/B16.11, and ASTM A403

Stainless steel pipe fittings are selected by geometry, joining method, pressure, and corrosion exposure. The ten common types are elbows, tees, reducers, caps, crosses, bends, couplings, unions, nipples, and stub ends. Elbows change direction, while tees and crosses divide flow. Reducers connect different diameters. Caps close pipe ends. Couplings, unions, and nipples support compact connections. Stub ends work with lap-joint flanges.

ASME B16.9 covers factory-made wrought butt-welding fittings, including dimensions, tolerances, and testing expectations. ASME B16.11 covers forged socket-welding and threaded fittings. These standards are not interchangeable. ASTM A403 specifies wrought austenitic stainless steel pressure fittings, with grades commonly including WP304 and WP316 families. The International Stainless Steel Forum reported approximately 58.4 million tonnes of global stainless crude steel production in 2023. That scale supports broad availability, but availability does not guarantee correct metallurgy. The list looks tidy. Field selection is not.

Tips: Match the fitting schedule with the pipe wall thickness. Check pressure-temperature ratings, weld procedure requirements, and material certificates. Inspect heat numbers before installation. A 316 fitting beside 304 pipe may still create a weak corrosion strategy. Avoid relying only on outside appearance. Surface finish can hide wrong material or poor internal geometry. In practice, elbows often receive the most attention, while small nipples and couplings receive too little. That is a mistake worth reconsidering. Reference the latest editions of ASME B16.9, ASME B16.11, and ASTM A403 before approval.

What Are the Top 10 Types of Stainless Steel Pipe Fittings?

No. Fitting Type Main Function and Configuration Typical End Connection Common Dimensional Features Primary ASME Standard Common ASTM A403 Grades Typical Applications
1 90° Elbow Changes the direction of a pipe run by 90 degrees. Butt-welding, socket-welding, or threaded Long-radius elbows commonly use a centerline radius of 1.5 × nominal pipe diameter; short-radius elbows use approximately 1.0 × diameter. ASME B16.9 for wrought butt-weld fittings; ASME B16.11 for forged socket-weld or threaded fittings WP304/L, WP316/L, WP321, WP347 Process piping, water treatment, food processing, chemical and pharmaceutical lines
2 45° Elbow Provides a gradual 45-degree change in direction with less flow disturbance than a sharper bend. Butt-welding, socket-welding, or threaded Available in long-radius designs; the fitting angle is 45 degrees and the wall thickness normally matches the specified fitting schedule. ASME B16.9 or ASME B16.11, depending on end connection WP304/L, WP316/L, WP321 Low-pressure-loss routing, utility piping, sanitary systems and compact process layouts
3 Equal Tee Creates a 90-degree branch connection while maintaining the same nominal size through all three outlets. Butt-welding or forged socket-welding/threaded The run and branch have the same nominal pipe size; dimensions include center-to-end measurements and fitting wall thickness. ASME B16.9 or ASME B16.11 WP304/L, WP316/L, WP321, WP347 Branching process lines, instrument connections and fluid distribution headers
4 Reducing Tee Forms a branch connection where the branch outlet is smaller than the main run. Butt-welding or forged socket-welding/threaded The run size remains larger than the branch size; dimensions are specified by run size × run size × branch size. ASME B16.9 or ASME B16.11 WP304/L, WP316/L, WP321 Equipment take-offs, sampling points, auxiliary branches and process manifolds
5 Concentric Reducer Connects different pipe sizes along a common centerline. Butt-welding or socket-welding/threaded The larger and smaller ends share the same centerline; size is identified by large-end diameter × small-end diameter. ASME B16.9 or ASME B16.11 WP304/L, WP316/L, WP321, WP347 Vertical piping, pump discharge lines and systems where symmetrical flow is preferred
6 Eccentric Reducer Reduces pipe size while keeping one side of the pipe wall aligned. Butt-welding or forged socket-welding/threaded The offset centerline creates a flat side, specified as flat-on-top or flat-on-bottom to control drainage or prevent air pockets. ASME B16.9 or ASME B16.11 WP304/L, WP316/L, WP321 Pump suction piping, horizontal lines, drainage systems and applications requiring air-pocket control
7 Pipe Cap Closes the end of a pipe or provides a permanent termination. Butt-welding; forged socket-weld or threaded versions are also available Common butt-weld forms include 2:1 elliptical, hemispherical and dished profiles; outside diameter and wall thickness follow the applicable standard. ASME B16.9 for butt-weld caps; ASME B16.11 for forged caps WP304/L, WP316/L, WP321, WP347 Dead-end piping, pressure vessels, tank connections and temporary line isolation
8 Stub End Provides a flanged connection when used with a loose lap-joint flange. Butt-welded to the pipe; used with a separate lap-joint flange Common types include long-pattern and short-pattern stub ends; the lap face, bore and weld-end dimensions must match the mating flange and pipe. ASME B16.9; mating flanges are typically specified to ASME B16.5 or ASME B16.47 WP304/L, WP316/L, WP321 Frequent disassembly, corrosive services, lined piping and systems requiring flange rotation
9 Cross Connects four pipe sections, generally with one straight run and two opposing branch outlets. Butt-welding or forged socket-welding/threaded May be equal or reducing; outlet sizes and center-to-end dimensions are selected for the specific piping arrangement. ASME B16.9 or ASME B16.11 WP304/L, WP316/L, WP321 Compact manifolds, utility distribution and specialized process-piping layouts
10 Return Bend Creates a 180-degree change in direction, returning the pipe run in the opposite direction. Butt-welding or forged socket-welding/threaded Usually manufactured as a close-return or long-radius configuration; overall dimensions depend on the centerline radius and end-to-end spacing. ASME B16.9 or ASME B16.11 WP304/L, WP316/L, WP321, WP347 Heat exchangers, heating coils, compact circulation loops and return piping

Standards note: ASME B16.9 covers factory-made wrought butt-welding fittings, while ASME B16.11 covers forged fittings with socket-welding and threaded ends. ASTM A403 covers wrought austenitic stainless steel piping fittings and includes grades such as WP304, WP304L, WP316 and WP316L. The applicable edition, pressure-temperature rating, wall thickness and material grade should be confirmed against the project specification.

Elbows, Tees, Crosses, and Reducers: Four ASME B16.9 Flow Fittings

In process piping, the top stainless steel fittings include elbows, tees, crosses, and reducers. These four ASME B16.9 flow fittings deserve close attention.

An elbow changes flow direction, commonly by 45 or 90 degrees. Long-radius designs usually reduce turbulence and pressure loss.

A tee divides flow or combines branch lines.

A cross serves four directions, but its extra branch can complicate stress analysis.

A reducer connects different nominal diameters. Concentric reducers suit centered vertical runs. Eccentric reducers help prevent unwanted liquid pockets.

Small detail. Big consequence.

ASME B16.9:2022 specifies dimensions, tolerances, and marking requirements for factory-made wrought buttwelding fittings. It does not replace material specifications. Engineers must verify grade, wall thickness, schedule, weld bevel, and corrosion allowance separately.

Field experience shows fit-up errors often appear before service failures. Check center-to-end dimensions with calibrated tools. Confirm heat numbers and use positive material identification when risk justifies it.

The International Stainless Steel Forum reported 58.4 million tonnes of global stainless crude steel production in 2023, up about 4.5% from 2022 (ISSF, 2023). This indicates a broad manufacturing base, not fitting demand directly. That limitation matters. Selection still depends on chloride exposure, temperature, flow velocity, and weld quality. A polished surface is not a corrosion guarantee.

Couplings, Unions, Caps, Plugs, Stub Ends, and Nipples: Six Joint Types

What Are the Top 10 Types of Stainless Steel Pipe Fittings?

Stainless steel piping commonly uses ten fitting types. These include elbows, tees, reducers, crosses, couplings, unions, caps, plugs, stub ends, and nipples. The correct choice depends on pressure, temperature, pipe size, and connection method. In practical inspections, small dimensional errors often cause larger installation problems. A fitting may look suitable but still fail alignment checks.

Couplings join two pipes with matching ends. Unions also connect pipes, but they separate easily during maintenance. Caps close the end of a pipe, while plugs seal an opening inside a fitting. Stub ends work with lap joint flanges and help reduce replacement costs in some systems. Nipples connect fittings over short distances, often in compact assemblies. Each joint has a different service purpose. Confusing a cap with a plug is a common mistake. I would always recheck the drawing.

Tips: Confirm the stainless steel grade before installation. Check thread form, wall thickness, and pressure rating. Clean sealing surfaces carefully. Avoid forcing misaligned threads. A coupling may need a wrench, but excessive torque can damage the fitting. For welded stub ends, inspect the weld area and heat-affected zone. Record the fitting size and schedule during inspection. That simple note improves traceability.

Size and Pressure Data: NPS ½–48, Schedule 5S–XXS, and Class Ratings

Ten fitting families cover most stainless steel piping layouts. The list includes 90-degree elbows, 45-degree elbows, tees, reducing tees, crosses, concentric reducers, eccentric reducers, caps, stub ends, and couplings. ASME B16.9 provides dimensional requirements for wrought butt-welding fittings from NPS ½ through NPS 48. ASTM A403/A403M defines material and manufacturing requirements for wrought austenitic stainless steel fittings. Field fit-up still matters. Small alignment errors can create large welding stress.

Size selection follows pipe dimensions, not appearance. ASME B36.19M defines stainless steel outside diameters and common schedules, including 5S, 10S, 40S, 80S, 120S, and 160S. XXS is often requested, but its dimensional basis requires careful confirmation against the governing specification.

A 2-inch Schedule 40S elbow has a different wall thickness from a Schedule 10S elbow, even when both share the same nominal bore. NPS ½–48 therefore describes range, not one universal pressure capacity.

Pressure classes mainly apply to flanges and flanged connections. ASME B16.5 covers NPS ½–24, while ASME B16.47 extends large-diameter flange coverage, commonly through NPS 48. Class ratings include 150, 300, 600, 900, 1500, and 2500. These are not simple bar values. Temperature and material reduce allowable pressure. A Class 600 connection may not equal 600 psi. That shortcut is risky. Verify the pressure-temperature table, corrosion allowance, weld procedure, and gasket details before ordering.

Material Selection: 304/304L at 18–20% Cr vs 316/316L with 2–3% Mo

For the top 10 stainless steel pipe fittings, material selection often matters more than shape. Elbows, tees, reducers, caps, couplings, unions, crosses, stub ends, lap-joint fittings, and threaded fittings may look similar. Their service environments are not. Grade 304/304L typically contains about 18–20% chromium, supporting a stable passive film. ASTM A240/A240M lists these composition ranges for common plate products used in fabrication. The “L” grade also reduces carbon, helping welded joints resist sensitization.

Grade 316/316L adds approximately 2–3% molybdenum. That element improves resistance to localized pitting, especially around chloride-bearing water, coastal air, and process residues. ASTM A403/A403M covers wrought austenitic stainless steel fittings, while ASTM A182/A182M applies to forged components. These standards help verify chemistry, heat treatment, dimensions, and mechanical performance. Use traceable mill certificates.

Industry scale reinforces the importance of correct specification. The International Stainless Steel Forum reported about 58.4 million tonnes of crude stainless steel production in 2023, showing how widely these materials are used. Yet volume does not equal suitability. A common field mistake is treating 316 as corrosion-proof. It is not. Weld tint, stagnant liquid, rough surfaces, and trapped salt can still create attack. I would review chloride concentration, temperature, cleaning chemicals, welding quality, and drainage before upgrading every fitting to 316L. That judgment is less convenient, but usually more reliable.

Top 10 Types of Stainless Steel Pipe Fittings: 304/304L vs 316/316L

Common stainless steel pipe fittings include elbows, tees, crosses, couplings, unions, adapters, reducers, caps, plugs, and nipples. The chart compares representative midpoint values for chromium and molybdenum content by weight. 304/304L typically contains 18–20% chromium, while 316/316L typically contains 16–18% chromium and 2–3% molybdenum. The added molybdenum improves resistance to chloride-related pitting and crevice corrosion.

  • Elbow
  • Tee
  • Cross
  • Coupling
  • Union
  • Adapter
  • Reducer
  • Cap
  • Plug
  • Nipple
