What Is a Pipe Flange and What Types Are Available?

A pipe flange is a mechanical connection used to join pipes, valves, pumps, and other equipment. It creates a firm, accessible joint without requiring permanent welding at every connection. In practical installations, technicians align two flanges, place a gasket between their faces, and tighten bolts in a controlled sequence. This process helps manage pressure, vibration, temperature, and future maintenance needs. A well-selected flange can make a pipeline easier to inspect and repair. A poor choice can cause leakage, distortion, or costly downtime.

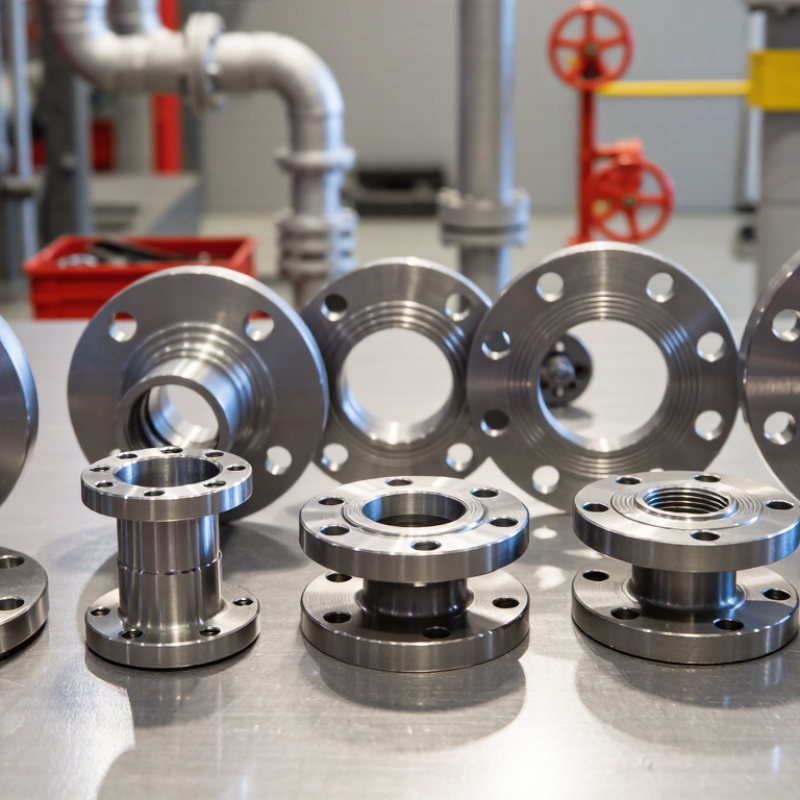

Flanges are available in several designs, including weld neck, slip-on, socket weld, threaded, lap joint, and blind types. Each design serves different pressure, temperature, alignment, and maintenance requirements. Weld neck flanges suit demanding systems because their tapered hubs support smoother stress transfer. Slip-on flanges are simpler to install, but they may offer less strength in severe service. Blind flanges close open pipe ends during testing, isolation, or future expansion. Standards such as ASME B16.5 provide important guidance for dimensions, pressure ratings, and materials. However, standards do not replace engineering judgment. Field conditions can differ from drawings, and gasket performance is sometimes underestimated. Even experienced teams should verify pipe size, flange rating, bolt material, facing type, and operating temperature before installation. Small details matter. This guide explains how a pipe flange works, compares common types, and identifies practical selection points. It also considers limitations, because no flange design is ideal for every system.

What Is a Pipe Flange and What Types Are Available?
Table of Contents [Hide]
1 Definition and Basic Function of a Pipe Flange
2 Key Components and Common Flange Materials
3 How Pipe Flanges Connect and Seal Piping Systems
4 Main Types of Pipe Flanges and Their Applications
5 How to Choose the Right Pipe Flange for a Piping Project

Definition and Basic Function of a Pipe Flange

A pipe flange is a machined ring that joins pipes, valves, pumps, and other equipment. It creates a bolted connection between two components. A gasket sits between the raised or flat faces. When bolts are tightened, the gasket fills small surface irregularities and helps prevent leakage. The connection can also be opened for inspection or maintenance.

ASME B16.5 covers flange sizes from NPS 1/2 through NPS 24. For larger piping, ASME B16.47 covers NPS 26 through NPS 60. These dimensions are not decorative details. They control fit, pressure capacity, and bolt alignment.

These dimensions are not decorative details. They control fit, pressure capacity, and bolt alignment.

Common types include weld-neck, slip-on, socket-weld, threaded, blind, and lap-joint flanges. A weld-neck flange suits high-temperature or cyclic service because its tapered hub reduces stress concentration. A blind flange closes a pipe end. It is useful during pressure testing or system isolation.

ASME B16.5 also specifies pressure-temperature ratings, facing dimensions, and drilling patterns. However, selecting a flange by nominal size alone is a weak practice. Fluid, temperature, corrosion, gasket material, and bolt load must be checked together. One overlooked variable can create an expensive leak.

Tips:

Check the applicable ASME or ISO 7005 requirements before ordering.
Clean both faces carefully.
Confirm the gasket matches the flange face.
Tighten bolts in a cross pattern, using documented torque values.
Field conditions are rarely perfect.
Recheck alignment before final tightening.

Key Components and Common Flange Materials

What Is a Pipe Flange and What Types Are Available?

A pipe flange is a bolted connection that joins pipes, valves, pumps, and fittings. Its key components include the flange face, bore, bolt holes, hub, and gasket seating area. The face controls sealing performance. The bore should match the pipe’s internal diameter. ASME B16.5 defines important dimensions, pressure classes, and tolerances for many industrial flanges.

Common types include weld-neck, slip-on, blind, threaded, socket-weld, and lap-joint flanges. Weld-neck designs suit high-pressure or high-temperature service because the tapered hub distributes stress. Blind flanges close pipe ends during maintenance. Slip-on flanges cost less, but their weld arrangement may offer lower fatigue resistance. Material selection depends on pressure, temperature, fluid chemistry, and inspection conditions. Carbon steel is widely used for general process piping. Stainless steel performs better against many corrosive fluids. Alloy steel supports elevated temperatures. The World Steel Association reported global crude steel production above 1.8 billion tonnes in 2023, showing the material’s huge industrial supply base, but availability does not guarantee suitability.

Tips: Check the gasket type, bolt grade, flange rating, and surface finish together. Never choose by pipe size alone. A field check should also look for pitting, uneven bolt tightening, and flange rotation. That practical step is easy to overlook. ASME B16.5 remains useful, but real service conditions may expose weaknesses in an otherwise compliant design.

What Is a Pipe Flange and What Types Are Available? - Key Components and Common Flange Materials

Category Type or Material Key Characteristics Typical Applications Important Considerations
Definition Pipe flange A bolted ring or fitting used to connect pipes, valves, pumps, equipment, or other piping components. Industrial process piping, water systems, utilities, power facilities, and general mechanical services. A complete joint normally includes two matching flanges, a gasket, and correctly selected bolts and nuts.
Common Flange Types Weld Neck Flange Has a long tapered hub and is butt-welded to the pipe. High-pressure, high-temperature, cyclic, and critical-service piping. Provides good stress distribution and alignment; requires qualified butt-welding and more installation space.
Slip-On Flange Slides over the pipe and is usually fillet-welded on the inside and outside. Low- to moderate-pressure general-purpose piping. Simple alignment and lower fabrication cost, but generally less fatigue resistance than a weld neck design.
Socket Weld Flange The pipe fits into a socket and is joined with an external fillet weld. Small-diameter, moderate-pressure piping. Offers good alignment for smaller pipe sizes; internal crevices and weld details may require special attention in corrosive service.
Threaded Flange Connects to externally threaded pipe without welding. Low-pressure or non-critical services where hot work is restricted. Useful for maintenance and installation in hazardous areas; thread compatibility and sealing are essential.
Lap Joint Flange A loose flange used with a separate lap-joint stub end welded to the pipe. Systems requiring frequent dismantling or corrosion-resistant wetted surfaces. Allows bolt-hole rotation and economical use of expensive corrosion-resistant alloys; the stub end carries the sealing surface.
Blind Flange A solid, unbored flange used to close the end of a pipe or nozzle. Pressure testing, isolation, maintenance, and future system extensions. Must be selected for the design pressure, temperature, bolt load, and gasket requirements of the system.
Orifice Flange A pair of flanges with pressure-tapping connections for an orifice plate assembly. Flow measurement in process and utility piping. Requires correct tapping location, plate installation, straight-pipe conditions, and instrumentation design.
Common Flange Materials Carbon Steel High strength, widely available, and generally economical. Oil, gas, water, steam, compressed air, and general industrial services. Usually requires corrosion protection or suitable fluid control in wet or corrosive environments.
Stainless Steel Good resistance to oxidation and many corrosive fluids; available in several grades. Food processing, chemical services, water treatment, pharmaceutical, and sanitary piping. Grade selection must consider chloride exposure, temperature, pitting, crevice corrosion, and welding requirements.
Alloy Steel Contains alloying elements that improve high-temperature strength, toughness, or wear resistance. Power generation, high-temperature steam, refining, and demanding process systems. Preheating, post-weld heat treatment, and controlled welding procedures may be required for certain grades and thicknesses.
Ductile Iron Cast material with good strength and impact resistance compared with gray iron. Municipal water, wastewater, irrigation, and buried pipeline systems. Suitable pressure rating, corrosion protection, and handling practices must be confirmed for the service environment.
PVC or CPVC Lightweight thermoplastic materials with strong resistance to many chemicals. Water treatment, chemical drainage, irrigation, and selected low-temperature services. Temperature, ultraviolet exposure, impact, chemical compatibility, and bolt tightening limits are critical.
Non-Ferrous Alloys Includes materials such as aluminum, copper alloys, nickel alloys, and titanium. Marine, chemical, heat-transfer, aerospace, and highly corrosive applications. Selection depends on corrosion mechanism, galvanic compatibility, temperature, strength, and lifecycle cost.
Key Selection Factors Nominal Pipe Size The flange bore, outside diameter, bolt circle, and bolt-hole pattern must match the piping system. All connected components in the same joint. Nominal size is not always equal to the measured outside diameter; use the applicable dimensional standard.
Pressure Class A standardized designation indicating pressure-temperature capability for a particular material and design standard. All pressure-containing piping systems. Do not compare pressure classes across different standards without checking their pressure-temperature tables.
Facing and Gasket Raised face, flat face, ring-type joint, and other facing arrangements use compatible gasket designs. Any bolted flanged connection. Gasket material, surface finish, bolt load, and alignment directly affect sealing performance.
Temperature and Fluid Material and gasket compatibility must reflect operating temperature, pressure, corrosion, and fluid composition. Steam, chemicals, hydrocarbons, potable water, gases, and slurries. Consider thermal expansion, embrittlement, corrosion, erosion, and chemical permeation.
Applicable Standard Common dimensional and manufacturing requirements are defined by recognized piping standards. Engineering, procurement, fabrication, inspection, and maintenance. Verify the required standard, material specification, dimensions, testing, marking, and certification before purchase or installation.

Note: Pressure-temperature ratings, dimensions, gasket requirements, and material suitability must be confirmed against the governing piping code, applicable standard, and project specifications.

How Pipe Flanges Connect and Seal Piping Systems

A pipe flange is a bolted connection that joins pipes, valves, pumps, and other equipment. Common designs include weld-neck, slip-on, socket-weld, threaded, lap-joint, and blind flanges. Each type suits different pressures, temperatures, installation methods, and maintenance needs. ASME B16.5 defines flange dimensions, pressure classes, facing details, and dimensional tolerances for many industrial piping applications.

Flanges connect through controlled bolt tension. Bolts press the gasket between two machined faces. The compressed gasket fills small surface irregularities and creates the seal. Alignment matters. So does cleanliness. Rust, scratches, uneven gaps, or a distorted flange can create a leakage path before the system reaches operating pressure. ASME PCC-1 provides recognized guidance for bolted-flange assembly, including tightening sequences, lubrication, and joint inspection. Torque alone can mislead.

The U.S. Department of Energy reports that compressed-air leaks may waste 20–30% of compressor output. Poor flange sealing can contribute to that loss. A technician may hear a faint hiss, feel a cold spot, or find dust collecting around a joint. These clues deserve attention. A gasket is not a magic washer. Reusing one is often a bad assumption, although site procedures sometimes permit it. That deserves honest review. Correct flange selection, clean faces, suitable gasket materials, and gradual cross-pattern tightening provide a more dependable seal. Pressure testing should follow the applicable code and operating procedure.

Main Types of Pipe Flanges and Their Applications

A pipe flange is a bolted connection that joins pipes, valves, pumps, and other equipment. It also allows maintenance without cutting the line. In field work, the gasket face matters as much as the flange material. A small alignment error can cause leakage after thermal cycling.

Weld neck flanges suit high-pressure and high-temperature service because their tapered hubs reduce stress near the weld. Slip-on flanges install more easily, but they offer less fatigue resistance. Socket weld flanges serve smaller, higher-pressure lines, while threaded flanges avoid welding where site conditions make hot work difficult.

Blind flanges close pipe ends and support pressure testing. Lap joint flanges work well when frequent dismantling is expected, especially with lined or corrosion-sensitive piping.

Useful distinctions remain. ASME B16.5 covers flanges from NPS 1/2 through NPS 24 and pressure Classes 150 to 2500. Larger sizes fall under ASME B16.47, which covers NPS 26 through NPS 60. A 2024 market analysis from Grand View Research identifies oil and gas, chemical processing, and power generation as major demand sectors. Those sectors often require different face finishes, alloys, and pressure ratings. Stainless steel may resist corrosive media, while carbon steel is often selected for cost and structural strength. Selection is not automatic. Temperature, fluid chemistry, bolt loading, gasket type, and piping movement must be checked together. Even experienced teams sometimes specify the correct class but overlook galvanic corrosion. That mistake deserves another review.

How to Choose the Right Pipe Flange for a Piping Project

What Is a Pipe Flange and What Types Are Available?

Choosing a pipe flange starts with the piping conditions, not the flange name. A flange creates a bolted connection for joining pipe, valves, pumps, and equipment. Common designs include weld neck, slip-on, socket weld, threaded, lap joint, and blind flanges. Weld neck flanges suit high pressure, thermal cycling, and demanding process lines. Slip-on flanges can reduce fabrication time, but their lower alignment tolerance may matter in vibrating systems. Blind flanges close a line for isolation or future expansion.

Pressure and temperature come first. ASME B16.5 covers flanges from NPS 1/2 through NPS 24, while ASME B16.47 addresses larger sizes from NPS 26 through NPS 60. These standards define dimensions, pressure classes, materials, and testing expectations. Check the design pressure at the actual operating temperature, not room temperature. That mistake is surprisingly common. The U.S. Energy Information Administration reports more than three million miles of natural gas pipelines in the United States, showing why consistent flange selection and maintenance practices matter across large networks.

Material compatibility needs equal attention. Match the flange alloy with the pipe, fluid chemistry, gasket, and bolting. Raised-face flanges support many general services, while ring-type joints are used for demanding pressure applications. Confirm the pipe outside diameter, facing, bolt pattern, corrosion allowance, and available installation space. A lap joint may simplify frequent dismantling, but it can be unsuitable where high structural loads reach the joint. In field work, I would also verify drawings against the installed pipe; revisions and small dimensional errors are not unusual.
