Selecting the right Rf Connector Adaptors is a small decision with major consequences for signal integrity, reliability, and maintenance costs. A loose interface can create return loss, intermittent faults, or visible heating around a high-power connection. The details matter.
Market research reflects this growing pressure. Grand View Research identifies expanding demand for RF connectors across telecommunications, aerospace, defense, and test equipment. MarketsandMarkets also links market growth to 5G infrastructure, higher-frequency systems, and increasingly compact electronics. These reports describe broad market direction, not a guarantee for every project. That distinction deserves attention.
Eric Bogatin, a recognized signal-integrity educator and author, offers a useful principle: “Every interconnect is part of the channel.” His point applies directly to Rf Connector Adaptors. An adaptor is not merely a mechanical bridge. Its impedance, plating, gender configuration, frequency range, and torque requirements can influence the entire RF path. A connector that fits physically may still perform poorly electrically.
This guide presents 10 practical tips for choosing Rf Connector Adaptors with greater confidence. It considers connector families, impedance matching, operating frequency, insertion loss, VSWR, power handling, environmental sealing, materials, and supplier documentation. It also questions convenient assumptions. Cheap is not always economical. Gold plating is not automatically superior. A familiar connector may be wrong for a demanding frequency band.
Check the datasheet.
Real-world inspection remains essential. Examine threads, center pins, cable strain, and mating surfaces before installation. Small defects often become expensive failures later.
Understanding RF Connector Adaptor Types and Compatibility
10 Tips for Choosing RF Connector Adaptors

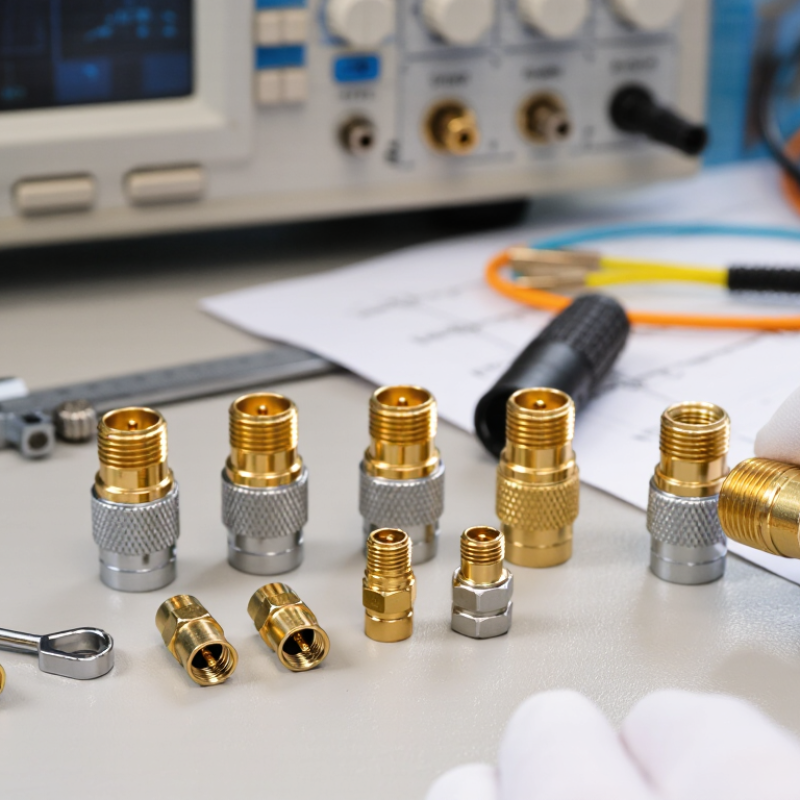

Choosing an RF connector adaptor starts with identifying both connector types. Check the interface, gender, coupling method, and contact structure. A plug-to-plug adaptor will not solve a socket-to-socket mismatch. Common families include threaded, bayonet, snap-on, and push-pull designs. They are not automatically interchangeable. Confirm the adaptor’s impedance, usually 50 or 75 ohms, before installation. A mismatch can increase reflections and reduce measurement accuracy. Frequency range also matters. An adaptor rated for low frequencies may perform poorly at microwave frequencies.
Inspect the datasheet, not just the product photograph. Verify maximum power, insertion loss, return loss, voltage standing wave ratio, and operating temperature. Check the body material and plating when corrosion or repeated handling is expected. The centre contact must align smoothly. Never force a stubborn connection. Clean mating surfaces with approved tools, then tighten threaded parts to the specified torque. Excessive force can damage delicate threads. I have seen “almost compatible” parts create intermittent readings.
Cable size and bend direction deserve attention. A rigid adaptor may stress a lightweight cable. Use the shortest practical connection path. Measure the assembled height inside crowded equipment. An adaptor can fit electrically yet fail mechanically. I still recheck gender and impedance before testing; visual confidence is not enough. This small pause has prevented avoidable rework. When specifications conflict, seek verified technical documentation and record the selected configuration for future maintenance.
